Shale Shaker Parts Rubber Float Mount Assembly 1129-00
Product Introduction
Xi'An TianRui Petroleum Machinery Equipment Company Limited engages in solid control equipment and drilling waste management, oil drilling engineering and technical services; technology development and application of automatic control equipment; overhaul and maintenance of oil and gas well testing; sales of oil drilling equipment and accessories, drilling tools, drill pipe and tubing, instrumentation and accessories, electromechanical equipment. We have been committed to being the world's leading suppliers and technical service providers in petroleum equipment industry.

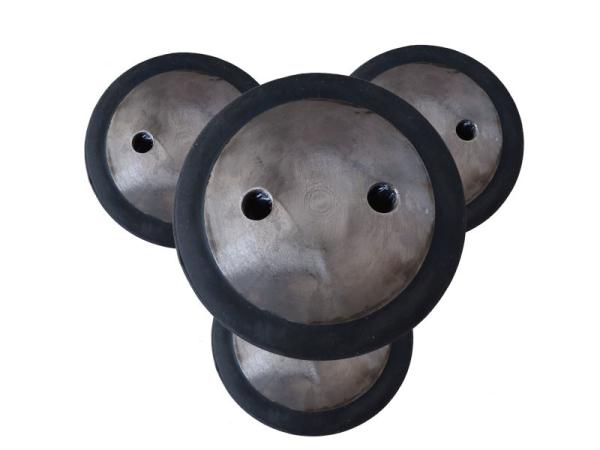

Float rubber mount is a composite type rubber springs. Inner is the steel spring and out with rubber. Compared with traditional springs, it has long stretch force. 1129-00 rubber mount assembly is the most common use. The parematers as following:
Height: 77(±2)mm
Diameter: 100mm
Bolts: 12mm
Net Weight: 1 KG
All rubber mounts can be made as your requirement size.
Specialities of Our Drilling Shale Shaker
- Overall heat treatment, long time work.
- Martin or OLI vibration motor.
- Hopper type feed mode reduces feed speed.
- Vibration strength is 7.5G, adjustable.
- Screen box angle is mechanical and adjustable.
- Schneider or Siemens electrical components.
- Wedge-type compaction device facilitates fast replacement of screen.
Main Parameters of Drilling Shale Shaker
| Model | TRPS703 | TRPS585-4 | TRZS703 | TRZS585 |
| Vibration Motion | Balanced Elliptical Motion | Linear Motion |
| Treatment Capacity | 130m³/h | 140m³/h | 120m³/h | 130m³/h |
| Motor Power | 1.94+1.0kw | 1.94+1.0kw | 1.5KW×2 | 1.72KW×2 |
| Screen Specs. | (700×1250mm)×3 | (585×1165mm)×4 | (700×1250mm)×3 | (585×1165mm)×4 |
| Screen Area | 2.6m² | 2.7m² | 2.6m² | 2.7m² |
| Vibration Strength | ≤7.1G | ≤7.1G | ≤7.1G | ≤7.1G |
| Double Amplitude | 7mm | 7mm | 6mm | 6mm |
| Deck Adjustment | -1°～+5° | -1°～+5° | -1°～+5° | -1°～+5° |
| Ex Standard | ExdIIBt4 / IECEX / A-TEX |
| Weight | 1630kg | 1618kg | 1620kg | 1600kg |
| Dimension | 2770×1785×1690mm | 2966×1600×1280mm | 2770×1785×1690mm | 2966×1600×1280mm |
| Remark | Above data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3. |
Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and in Xi'an city of China. We have the specialized technicians, senior engineers and peofessional marking team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products include : Petroleum equipments & tools such as solid control equipment, drilling equipments, production equipment, tubular goods, Wellhead quipments, downhole equipments, well control equipments, cementing tools etc. Petrochemicals.
Our Service:
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by us at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, we will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one ?which comes to an end as the calculation standard).
